Outdoor Aluminum Cabinet LED Display

<
>
1.Standardized precise dimensions, compatible with various installation scenarios. The 480mm x 320mm unit module is paired with a 960mm x 960mm integrated cabinet, achieving both flexible combination and a neat appearance.2.Modular design with meticulous craftsmanship, equipped with positioning pins, cabinet locks, safety rope handles and door locks for multiple safety configurations. It also has built-in power supply and receiving card, balancing both aesthetics and
DOWNLOAD
Description Technical Parameter Features Applications Product Videos

DESCRIPTION

This outdoor LED display is designed with IP66 high-level protection, specially built for complex outdoor environments. It features strong waterproof, dustproof and weather-resistant performance, enabling stable long-term operation in heavy rain, sandstorm, high humidity, coastal salt spray and other harsh conditions. It is an ideal visual solution for outdoor advertising, commercial plazas, scenic spots and transportation hubs.

TECHNICAL PARAMETER

Pixel Pitch P4.4 P5.7 P6.67 P8 P10
Module Size 480*320mm 480*320mm 480*320mm 480*320mm 480*320mm
Module Resolution 109*72dot 84*56dot 144*144dot 120*120dot 96*96dot
Cabinet Size 960*960*77mm 960*960*77mm 960*960*77mm 960*960*77mm 960*960*77mm
Cabinet Resolution 218*218dot 168*168dot 144*144dot 120*120dot 96*96dot
LED Configuration SMD1921 SMD2727 SMD2727 SMD2727 SMD2727
Pixel Density 51625dot/㎡ 30625dot/㎡ 22500dot/㎡ 15625dot/㎡ 10000dot/㎡
Cabinet Weight 24.5kg 24.5kg 24.5kg 24.5kg 24.5kg
IP Rating (front/back) IP66 IP66 IP66 IP66 IP66
Brightness >6000CD/㎡ >5500CD/㎡ >5500CD/㎡ >6000CD/㎡ >6000CD/㎡
Refresh Frequency 3840HZ 3840HZ 3840HZ 3840HZ 3840HZ
Temperature-operating -30℃~70℃ -30℃~70℃ -30℃~70℃ -30℃~70℃ -30℃~70℃
View Angle H140°/V140° H140°/V140° H140°/V140° H140°/V140° H140°/V140°
Gray Level 16bit 16bit 16bit 16bit 16bit
Life span ≥100,000 hours ≥100,000 hours ≥100,000 hours ≥100,000 hours ≥100,000 hours
Maximum Power 550W/㎡ 550W/㎡ 550W/㎡ 550W/㎡ 550W/㎡
Operation Voltage AC220V±10%(Optional AC110V)
Input signal WiFi/HDMI/DVI/VGA

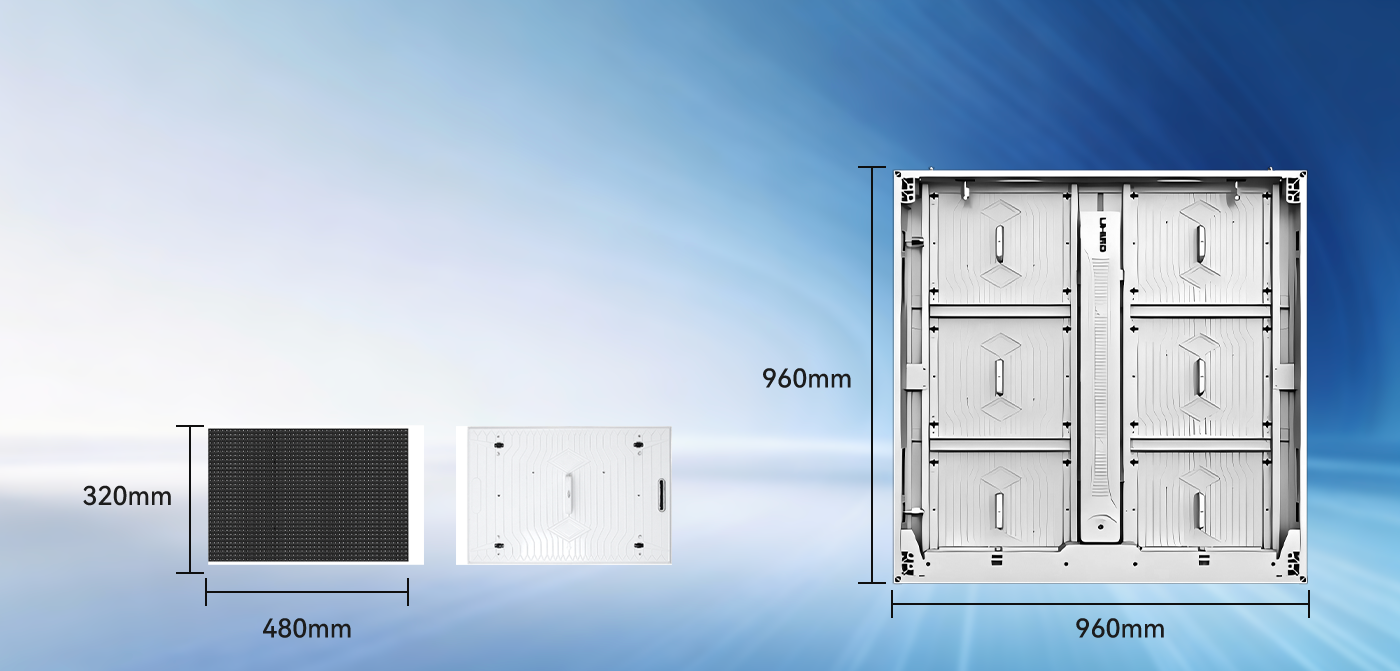

MODULE INTRODUCTION

Standardized precise dimensions, compatible with various installation scenarios. The 480mm x 320mm unit module is paired with a 960mm x 960mm integrated cabinet, achieving both flexible combination and a neat appearance.

ALUMINUM PROFILE CABINET

Modular design with meticulous craftsmanship, equipped with positioning pins, cabinet locks, safety rope handles and door locks for multiple safety configurations. It also has built-in power supply and receiving card, balancing both aesthetics and practicality.

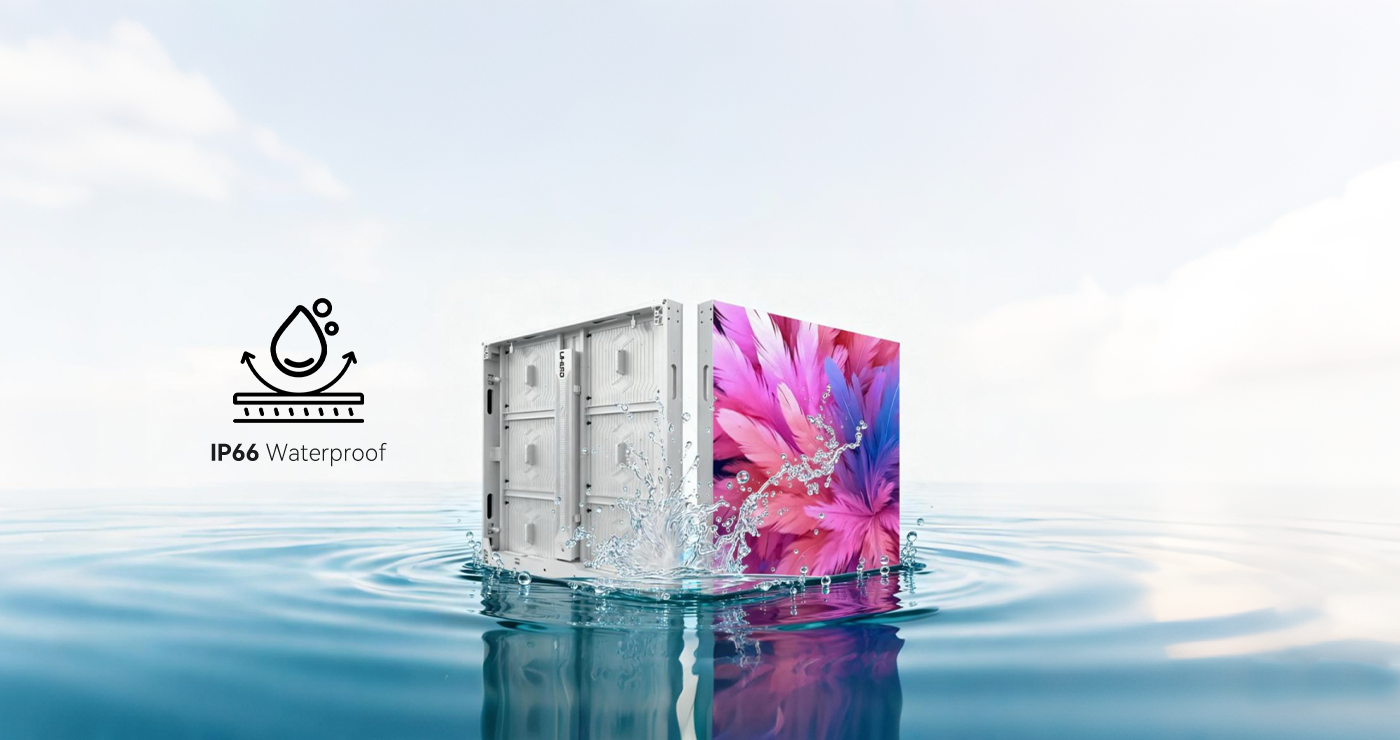

IP66 DUSTPROOF, WATERPROOF

IP66 Certified for ultimate outdoor resilience. Seamlessly operates in harsh environments, ensuring your visual display remains flawless rain or shine.

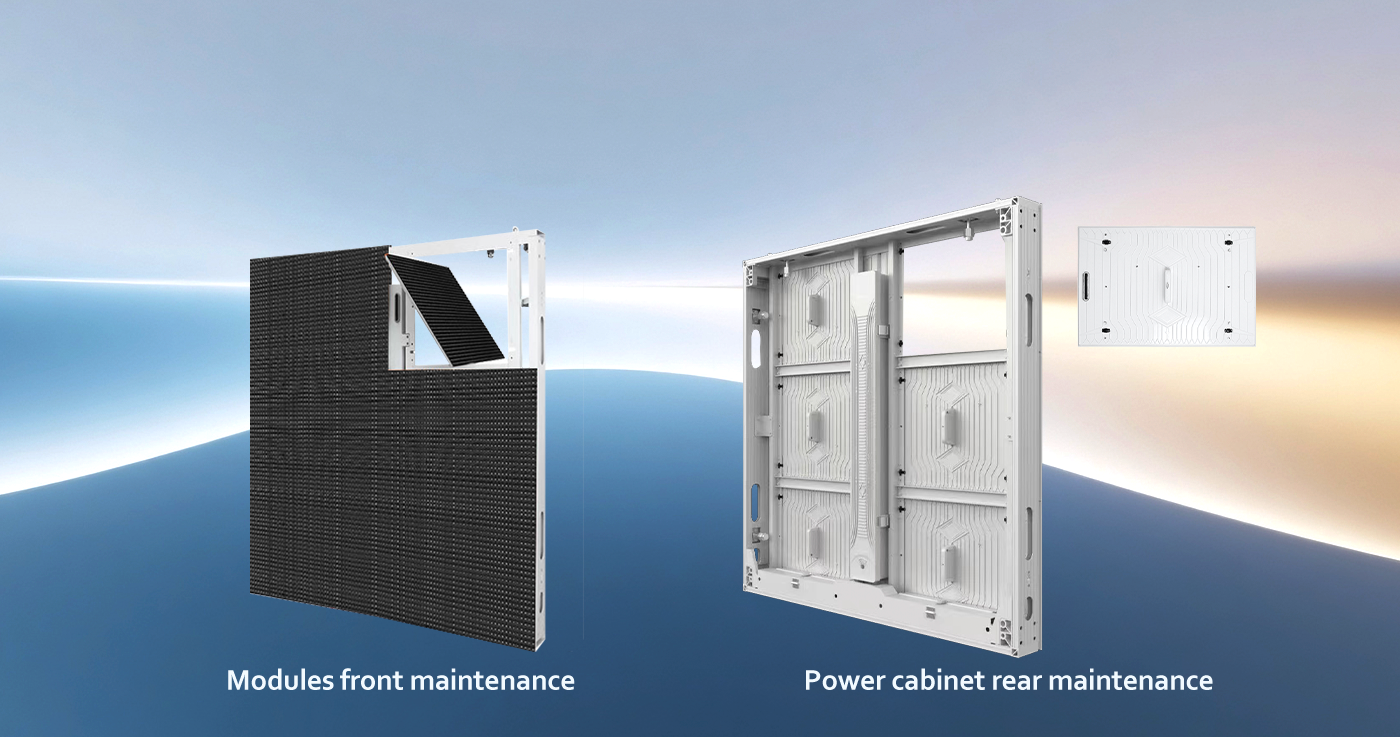

MAINTENANCE MODE

Front & Rear Access – Maximize uptime with zero hassle maintenance.

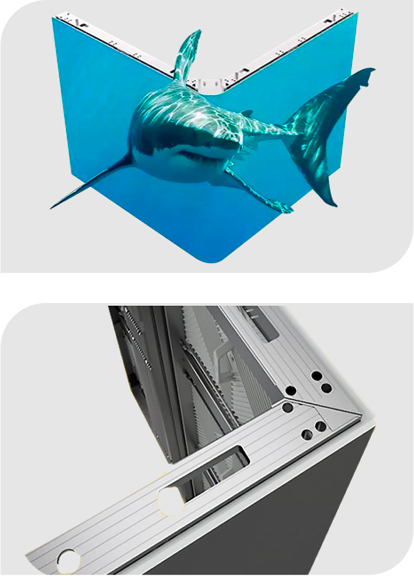

NAKED EYE 3D

Stunning Glasses-Free 3D Technology creates lifelike, immersive visuals that leap off the screen, capturing audience attention like never before.
40×320 mm small modules, 80°C curved, support arc splicing.
Support right angle splicing.

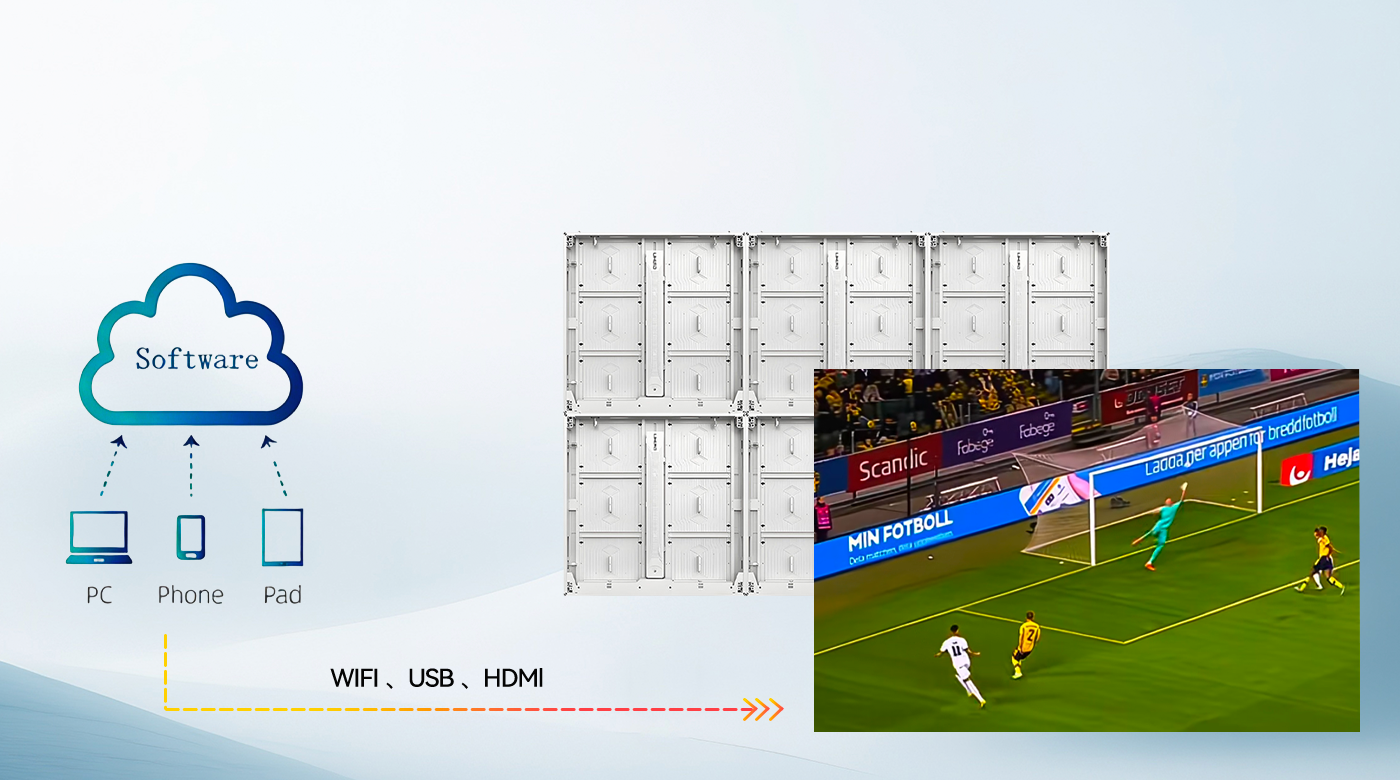

CONTROL METHOD

Triple Control Modes: HDMI / WiFi / USB. Local & Remote Ready.

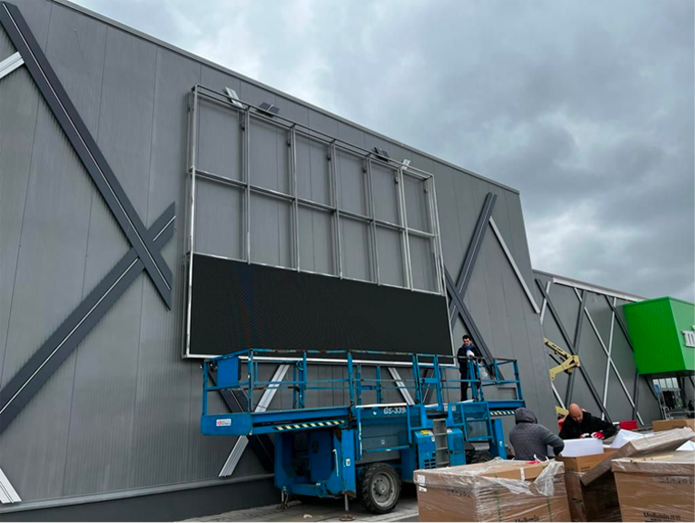

INSTALLATION STRUCTURE

Flexible Installation: Wall / Column / Embedded. Built for stability.
  • Wall Installation

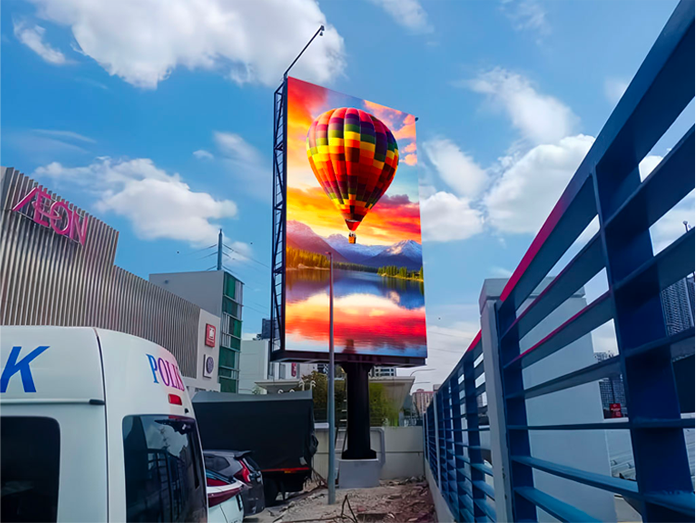

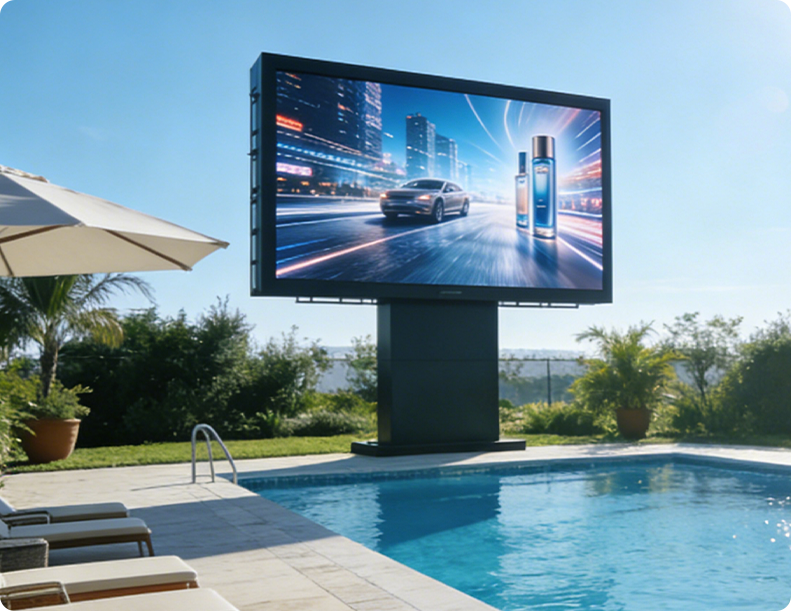

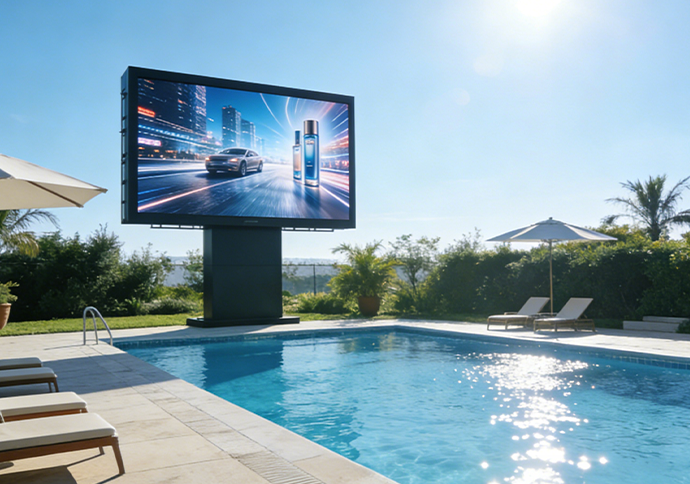

  • Column Installation

PACKING LIST

All-In-One Accessories: Certified, Waterproof, Ready to Install.
  • Controller
  • Controller
  • Main Signal Cables
  • Main Power Cables
  • Signal Cables Between Panels
  • Power Cables Between Panels
  • Screws
  • Spare Parts

FEATURES

Waterproof grade IP66
The high protection grade design ensures that the display screen can still operate stably under harsh outdoor weather conditions (such as rain, snow, dust, etc.), and is suitable for various outdoor environments.
Lightweight design
The high protection grade design ensures that the display screen can still operate stably under harsh outdoor weather conditions (such as rain, snow, dust, etc.), and is suitable for various outdoor environments.
Right-angle and corner design
The high protection grade design ensures that the display screen can still operate stably under harsh outdoor weather conditions (such as rain, snow, dust, etc.), and is suitable for various outdoor environments.
High brightness and clarity
The high protection grade design ensures that the display screen can still operate stably under harsh outdoor weather conditions (such as rain, snow, dust, etc.), and is suitable for various outdoor environments.
Excellent heat dissipation performance
The high protection grade design ensures that the display screen can still operate stably under harsh outdoor weather conditions (such as rain, snow, dust, etc.), and is suitable for various outdoor environments.
Easy to maintain
The high protection grade design ensures that the display screen can still operate stably under harsh outdoor weather conditions (such as rain, snow, dust, etc.), and is suitable for various outdoor environments.
